Description
UC4B Ground Contact — Heavy-Duty MCA Treatment for Structural Deck Framing
Heritage 2×10 Deck Framing is pressure treated using Micronized Copper Azole (MCA) to a minimum chemical retention of 0.23 pounds per cubic foot (pcf), with portions of inventory achieving retention levels as high as 0.31 pcf. This treatment profile satisfies—and exceeds—the requirements of AWPA Use Category 4B (UC4B), a designation intended for structurally critical wood members exposed to continuous moisture or ground contact.

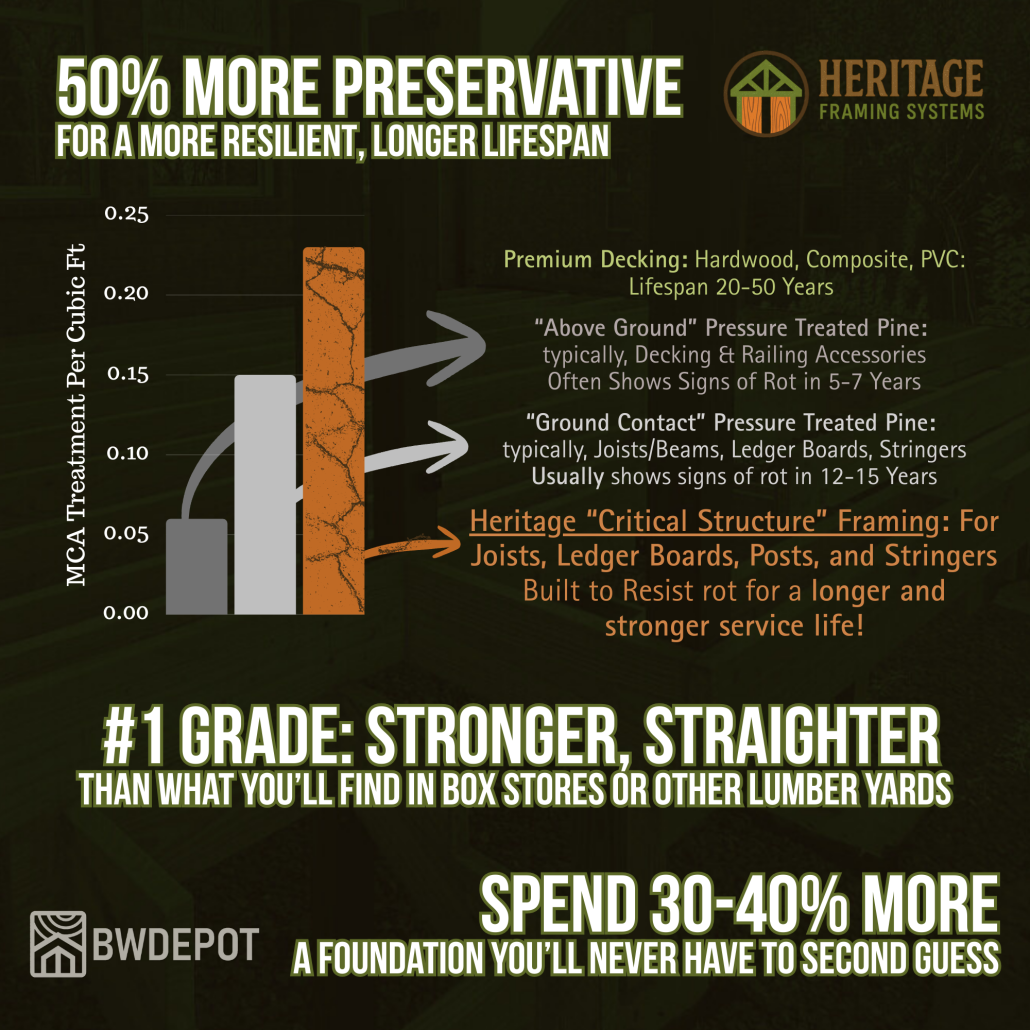

In contrast, the majority of pressure-treated 2×10 lumber available through retail lumberyards and national chains is treated to UC4A standards, typically near 0.15 pcf MCA. UC4A material is suitable for basic ground contact, but it is not engineered for sustained wet conditions, limited airflow assemblies, or deck structures supporting modern high-performance decking systems.
The increased cross section of a 2×10 places greater long-term demands on preservative performance—especially in joist spans, beams, and load-bearing applications. UC4B treatment provides the additional protection margin required to ensure structural integrity where moisture exposure and service life expectations are significantly higher.
Retention charts, treatment chemistry details, and a historical overview of pressure-treated lumber—from legacy CCA systems to modern MCA formulations—are available on the Heritage Deck Framing Resource Page. That resource also includes a video explainer outlining why UC4B treatment is increasingly specified for long-span deck framing.
Supporting reference: SFPA Marine Guide (2023)

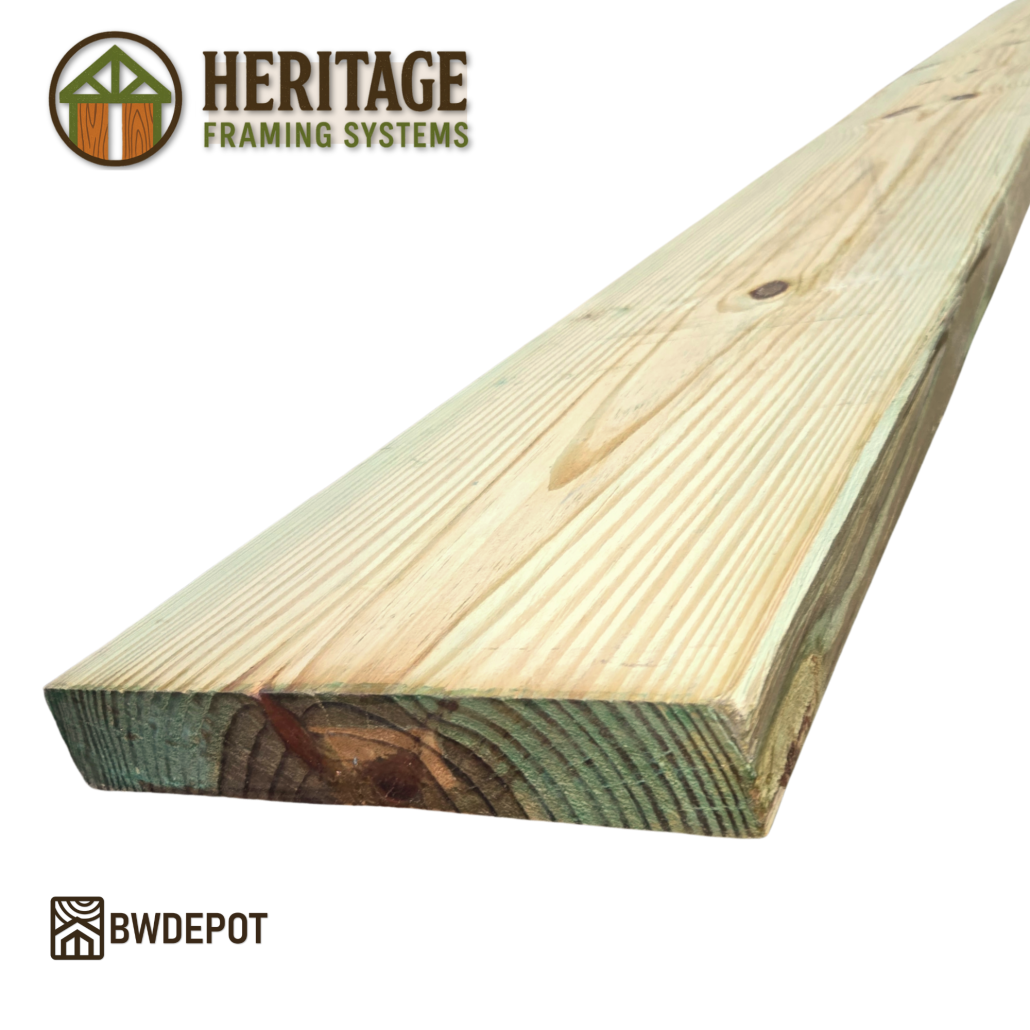

#1 Grade Southern Yellow Pine — Engineered Strength for Longer Spans
Heritage 2×10 Deck Framing is produced exclusively from #1 Grade Southern Yellow Pine (SYP), selected for applications where higher load capacity, stiffness, and dimensional reliability are required. Compared to #2 grade material commonly sold at retail, #1 grade lumber offers tighter grain structure, improved straightness, and more consistent engineering values.
Published grading data demonstrates clear structural advantages for #1 Grade Southern Pine over #2 Grade material, including:
- Bending Strength (Fb): 1,200 psi vs 1,050 psi (approximately 14% higher)
- Compression Parallel: 1,150 psi vs 1,075 psi (greater load resistance)
- Modulus of Elasticity: 1.6M psi vs 1.5M psi (increased stiffness)
For 2×10 framing—often used in longer joist spans, beam assemblies, and structurally demanding deck layouts—these gains translate into reduced deflection, improved load distribution, and greater long-term dimensional stability. Fewer knots and tighter grading tolerances also improve fastener holding power and reduce the risk of movement under dense decking materials.
Because most big box suppliers prioritize availability and price, #2 grade framing dominates retail inventories. Heritage specifies #1 grade intentionally, ensuring that larger-format framing members perform predictably throughout the life of the deck.
Additional grading tables, side-by-side comparisons, and structural context are available on the Heritage Deck Framing Resource Page, which documents how grade selection directly impacts deck longevity.
Reference: SPIB Standard Grading Rules (Table 1A) and Export Grades Manual
Get An Accurate Quote!
Get a fast, accurate quote on premium Brazilian hardwoods like Ipe, Cumaru, and Tigerwood—delivered nationwide from our Atlanta lumberyard. We’ll review your project details and get back to you quickly with current pricing, shipping options, and expert material guidance.
Bundle & Save on Complete Deck Systems
Pair Hardwood Decking with Heritage Premium Deck Framing and BWD-exclusive fastening systems to create a fully integrated hardwood deck solution engineered for long-term structural and visual performance.
Nationwide Shipping Excellence
Brazilian Wood Depot offers damage-free nationwide shipping, including professional crating, preparation photos, and real-time tracking. Learn more about delivery standards and logistics in the Nationwide Shipping Guide.
Explore, Compare & Learn
Explore specifications, treatment data, grading explanations, and the Heritage explainer video on the Heritage Deck Framing Resource Page, or expand your understanding of hardwood performance, airflow design, and long-term deck construction through the Hardwood Certified Education Program.
