Premium hardwoods like Ipe, Cumaru, and Garapa are known for their exceptional durability and decades-long service life. However, the long-term performance of any hardwood deck depends just as much on the framing beneath it as the decking itself.
This guide explains the framing principles that help hardwood decks remain stronger, flatter, and more stable for decades.
Proper joist spacing provides consistent support for both the decking and fastening system, helping create a deck that feels solid underfoot and performs well over time. For most residential hardwood decks, 16-inch on-center framing is our standard recommendation, while 12-inch spacing offers additional support for more demanding applications.
Proper airflow is one of the biggest factors in long-term hardwood deck performance. When both sides of the decking can dry evenly after rain or changes in humidity, the boards experience less moisture imbalance and generally remain more stable over time. Decks built close to the ground naturally have reduced ventilation, making thoughtful framing and fastening decisions even more important.
| Installation Environment | Performance Considerations | Recommended Design Approach | Recommended Hardwood Decking Type |
|---|---|---|---|
| Open, Elevated Deck | Excellent airflow allows the decking to dry more evenly after rain, creating one of the most favorable installation environments. | Standard hardwood framing practices are typically sufficient. | Standard hardwood decking profiles are typically suitable. Common options include 1×6, 5/4×6, 1×4, and 5/4×4 decking. |
| Moderate Ground Clearance | Reduced ventilation slows drying beneath the deck, increasing moisture retention and the importance of proper framing. | Pay closer attention to ventilation, framing quality, and fastening methods. | Standard hardwood decking profiles can still perform well as long as airflow is not restricted around the deck. Common options include 1×6, 5/4×6, 1×4, and 5/4×4 decking. |
| Low-Clearance Deck | Limited airflow and slower drying create a more demanding environment where moisture can remain beneath the decking for longer periods. | Consider closer joist spacing, premium framing lumber, and maximize ventilation wherever possible. | 1×6 and 5/4×6 decking are generally preferred. Consider using Ipe 1×6 Bottom-Grooved Decking or Ipe 5/4×6 Bottom-Grooved Decking to help manage reduced-airflow conditions. Ipe Deck Tiles, 1×4, or 5/4×4 decking may also be appropriate in certain applications. |
| Drainage or Dry-Below Systems | Restricting airflow beneath the deck can create different moisture conditions above and below the boards, increasing the importance of installation details. | Use installation methods designed for reduced-airflow environments and provide as much ventilation as practical. | Bottom-grooved decking is strongly recommended. Use Ipe 1×6 Bottom-Grooved Decking or Ipe 5/4×6 Bottom-Grooved Decking. For especially demanding drainage-system installations, Ipe Deck Tiles can be an even better option. |
| Rooftop & Waterproof Membrane Systems | Heat buildup, waterproof membranes, and limited airflow combine to create one of the most demanding environments for hardwood decking. | Careful framing design, fastening selection, and ventilation become especially important. | Ipe Deck Tiles are the preferred option for many rooftop and membrane installations. Where traditional boards are used, consider Ipe 1×6 Bottom-Grooved Decking or Ipe 5/4×6 Bottom-Grooved Decking to help improve moisture balance in reduced-airflow conditions. |
Want to learn more? Read our guides on Hardwood Deck Airflow, Drainage & Cupping and Brazilian Hardwood Performance by Exterior Conditions.

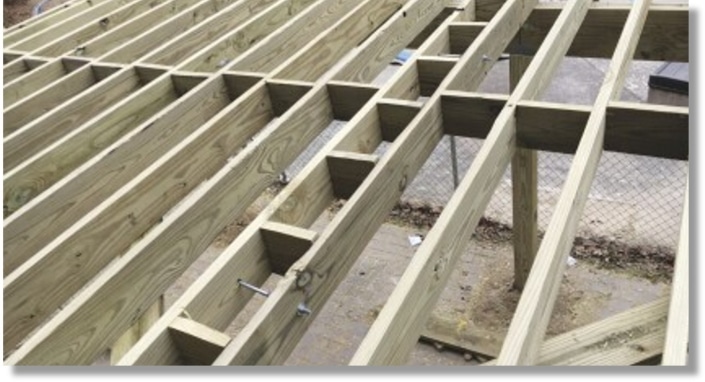

Blocking strengthens the framing system by improving rigidity and supporting key structural details. Use it where it’s needed—but avoid excessive blocking, which can restrict airflow beneath the deck and slow drying.
Click image to enlarge.

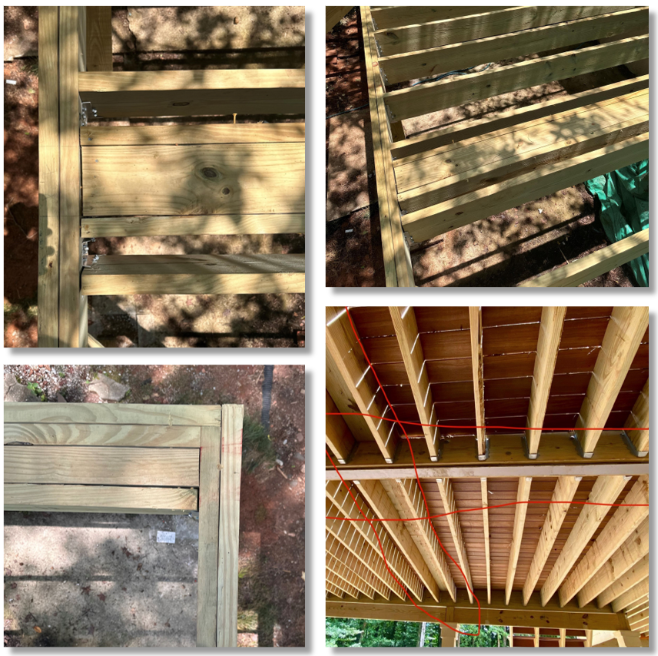

Click either image to enlarge.

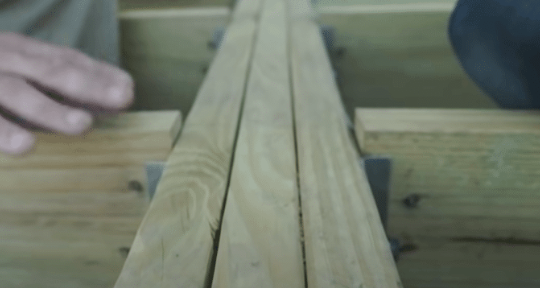

Reduces surface contact beneath the decking
Creates separation and promotes more even drying
Premium hardwood decking deserves framing built to the same standard. Heritage Deck Framing provides a stronger, more durable foundation designed to better match the lifespan of premium decking.
When investing in a premium hardwood deck, it’s worth asking whether the framing is built to the same standard as the decking itself. Upgrading the framing during construction is often far easier and more economical than correcting framing-related issues years later.
| Standard #2 Pressure-Treated | Heritage Deck Framing | Why It Matters |
|---|---|---|
| More knots and natural defects | Fewer knots, higher-grade lumber | Creates a straighter, more consistent framing surface. |
| Greater tendency to twist, crown, and warp | Reduced twisting and improved dimensional stability | Helps maintain a flatter decking surface over time. |
| More sorting and waste during installation | Higher usable yield | Less time spent rejecting, replacing, or correcting framing members. |
| Standard preservative treatment | UC4B treatment with 50% more MCA preservative | Provides increased protection for demanding exterior applications. |
| More variation in board size and straightness | More consistent dimensions | Improves joist alignment and fastening accuracy. |
| May require additional planing or shimming | Requires fewer framing corrections | Creates a smoother installation process and a more uniform finished deck. |
| General-purpose framing lumber | Premium framing engineered for hardwood decking | Better complements the longevity and performance of tropical hardwoods. |
Heritage Deck Framing wasn’t created simply as a better piece of pressure-treated lumber—it was developed as a premium framing system for hardwood decks. The objective is simple: build the structure beneath the decking to the same standard as the decking itself.
Every joist, fastener, and deck board depends on the framing beneath it. A straighter frame makes installation easier, helps hidden fastening systems perform as intended, reduces the need for on-site corrections, and contributes to a flatter, more consistent finished deck. While proper joist spacing, airflow, and installation practices remain essential, quality framing provides the stable foundation that allows the entire deck system to perform at its best for decades.
A premium hardwood deck is only as good as the frame beneath it. Quality framing, proper joist spacing, adequate airflow, and thoughtful installation work together to create a deck that performs beautifully for decades.
Explore our Hardwood Resource Center or use our Interactive Decking Wizard for personalized framing, fastening, and species recommendations.
