Whether your project uses Ipe, Cumaru, Garapa, Massaranduba, Tigerwood or Purpleheart, this guide ensures your surface-mounted screw installation meets both structural and visual expectations.
This text-based reference provides an accessibility-friendly version of the full Surface-Mount Screw Installation Guide.
Surface Screws Module
Overview of Surface-Mount Fastening
Surface-mounted screws provide the strongest mechanical fastening method for hardwood decking. Though visible, the use of stainless steel screws and precision installation ensures long-term performance and reduced movement risk.
Surface Screws Module
Fastener Requirements
Stainless steel only: Galvanized or coated hardware will produce oxidation rings around heads, staining hardwood boards, and repeating until corrected.
Pre-drill and countersink every screw location. Hardwoods such as Ipe, Cumaru, Garapa, Massaranduba require this to prevent splitting or screw snap-off.
Surface Screws Module
Use Smart-Bit or equivalent combined pre-drill/countersink tools for consistent depth and clean seating.
Surface Screw Installation Guidelines
Seal all fresh cuts with End Wax immediately to prevent end-checking.
Align screw heads symmetrically and maintain spacing of 1″–1.5″ from edges.
Follow manufacturer bit and spacing recommendations; maintain constant torque and seating depth.
Surface Screws Module
Finished Appearance Standards
A correctly installed deck will display discrete, evenly aligned screw heads with no visible marring, stain rings, or uneven seating.
Surface Screws Module
End Wax, Oiling & Finish Treatment
Apply End Wax to every cut-end immediately after trimming or beveling.
Oil after installation, not before.
Oiling underside of boards is non-beneficial; skipping oiling accelerates UV fading but not structural decay.
Surface Screws Module
Storage & Climatization
Store boards dry, elevated, out of direct sunlight.
Avoid wrapping tarps that trap moisture; maintain airflow using spacers between layers.
Surface Screws Module
Tooling & Handling
Use carbide-tipped blades or high-tooth-count saws to minimize chip-out.
Rinse sawdust from skin; dense hardwood dust increases risk of irritation.
Surface Screws Module
Hardware Corrosion & Staining
Non-stainless hardware causes rust-export stains with rain exposure.
These stains can be removed with oxalic or citralic acid, but return unless screw replaced with stainless.
Surface Screws Module
Easing Edges & Butt-Joints
All factory boards should be eased; fresh cuts should be rounded with 1/8″ round-over or lightly sanded.
Butt-joint gaps should match lateral spacing (recommended 1/8″ for hardwood) for visual uniformity.
Surface Screws Module
Board Spacing
Acceptable lateral joint spacing: 3/32″–3/16″, with 1/8″ preferred.
CAMO fastener systems require 3/16″ spacing.
Surface Screws Module
Avoiding Mitered Joints
Mitered corners move more than lap or butt joints; avoid for hardwood decks for long-term stability.
Surface Screws Module
1×12 Facia Best Practices
A 1×12 face board installed directly on joists without grooving will likely cup.
Mitigate by using bottom-grooving or ½″–¾″ furring strips between fascia and joists.
Open sides, free spacing, board face exposed above & below
Decreases cupping risk
Poor Airflow:
Enclosed perimeter, restricted ventilation, high AMC underneath
Sunlight dries the top surface, accentuating cupping forces
Surface Screws Module
Blocking Considerations
Bad Blocking:
Solid contact blocks in same direction as boards cause cupping of entire board length
Surface Screws Module
Good Blocking:
Ladder blocking, triple beams lowered, or marine-grade plywood strips used as furring mitigate stress.
Surface Screws Module
Drainage Systems
Under-deck drainage systems often trap moisture and restrict airflow:
Membrane systems: highest restriction
Pan systems: better airflow but still require design control
All drainage systems require pressure relief or bottom grooving
Surface Screws Module
Bottom Grooving
When ventilation cannot be optimized:
Kerf boards on the bottom side
Apply to boards installed over membranes, solid surfaces, or drainage systems
Suitable for 1×6 & 5/4×6 hardwoods
Surface Screws Module
Oiling Instructions
The guide refers to a printable PDF with Messmer’s Cleaner (Part A), Brightener (Part B), and UV Plus Oil. The workflow includes cleaning, brightening, and oiling to maximize lifespan and aesthetics.
Surface Screws Module
Conclusion
Surface-mount screw installation demands the correct fastener hardware, consistent pre-drilling, climate-aware handling, and long-term design foresight. When combined with proper storage, airflow, board spacing, and finish treatment, your Brazilian hardwood deck will perform at a resort-grade level for decades.
Resource Images & Visual Examples
Cover slide introducing the surface-mount screw installation guide.

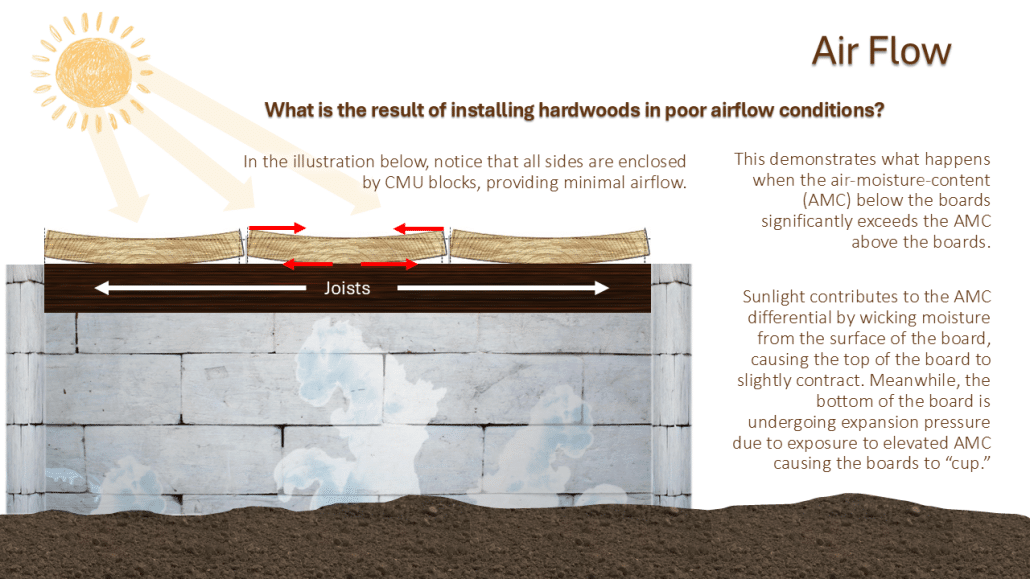

Illustration of poor airflow causing cupping in hardwood decking.

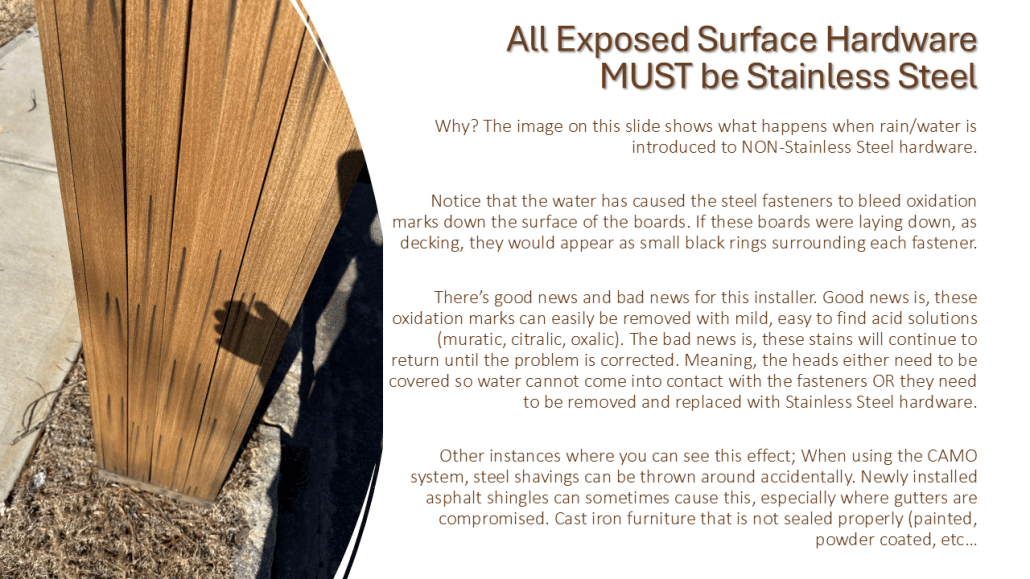

Example of oxidation staining around screw heads from improper hardware.

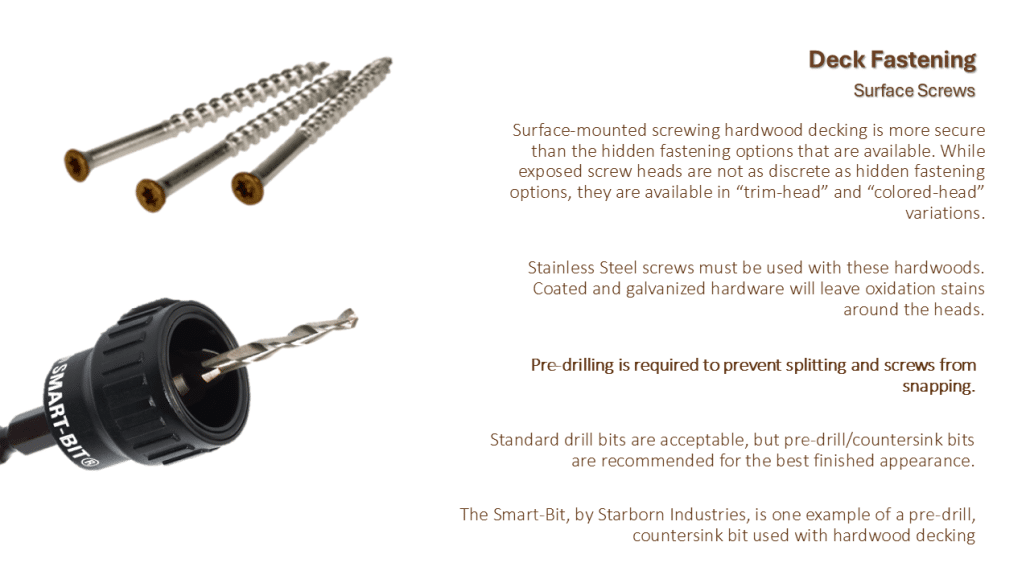

Demonstration of Smart-Bit pre-drill/countersink tool use on hardwood.
Interactive Multimedia Resources
Decking Wizard – Interactive Recommendation Resource for personalized hardwood and fastener guidance.
IPEcertified – Certification Course for Ipe and Hardwoods covering decking, siding, and installation best practices.
MessmerCertified– Interactive Cleaning & Oiling Guide for maintaining hardwood decks and siding.
ClipCertified – Step-by-step Installation Guide for BWD Deck Clips and hidden fastening systems.
SurfaceScrewCertified – Installation Guide for proper stainless-steel surface fastening on hardwood decks.
CamoCertified – Interactive Guide for installing Brazilian hardwoods with the Camo Edge hidden fastener system.
DeckMasterCertified – Multimedia Guide for mastering the Deck Master undermount hidden fastening method.
ProPlugCertified – Complete Guide for using the Pro Plug hidden fastening system with hardwood decking.
